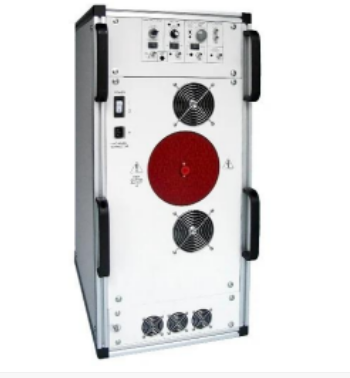

AMF high voltage amplifier

1.Output voltage: 0 ~±10kv DC or AC peak

2.Output current: 0 ~±60 mA DC or AC peak ±300mA maximum 20us

3.Large signal bandwidth :DC to greater than 10khz(2% distortion)

4.Dc voltage gain: 1000V /V

5.OEM customization available

High voltage amplifier AMF10R600, output voltage ±10kV, output current ±60mA DC,Output peak current ±300mA up to 20us，Wisman High Voltage Power Supplies offers high voltage power amplifiers for industrial and research applications.All solid state high voltage insulation design, can achieve high conversion rate, broadband and low noise operation.Four-quadrant active output absorbs or outputs current to a reactive or resistive load over the entire output voltage range.This type of high voltage amplifier output from Wisman High Voltage Power Supply is essential for achieving accurate output response and the high conversion rates required for a variety of loads.Examples include high capacitive or reactive loads.

Product Features:

Four-quadrant output for driving capacitive loads

Closed-loop system achieves high precision

Short-circuit protection for device protection

All-solid-state design, maintenance-free operation

Dc stable programmable power supply applications

Low output noise for highly accurate output.

Typical applications:

Dielectric elastomer,Soft robot, HASEL Actuator (Artificial muscle), Electroactive Polymer ,Ionic conducting polymer gel film,Pneumatic artificial muscle, Electroviscous Fluid, Magnetorheological Fluid, Ferroelectric tester, Piezoelectric Drive and Control, Laser modulation, Semconductor research, electrostatic deflection, Electrorheological fluid, AC or DC bias, Particle Accelerators, Mass Spectrometers, Material characterization, Ferroelectric, Atmospheric plasma, Dielectric barrier Discharge, Dielectric Barrier,Dielectric barrier discharge , DBD plasma actuator, Atmospheric pressure plasma, Corona discharge, Electrostatic suspension furnace , Electrostatic haptic display, Water tree, Dielectric breakdown testing, Ion beam deflection, Electron beam deflection, Electrophoresis, Dielectrophoresis , Flash sintering, Material polarization, Ion engine, Particle accelerator, Material characterization, Electrostatic actuator, Electrostatic spinning, Electrostatic spraying, Electrostatic coating, Solar panel (photovoltaic cell) testing, Langmuir probe, Electro-optical modulation Manufacturing, Electrophotography, Corona generator, Scorotron grid consumables, Main charging roller (PCR), Developing roller, Corona charging supplies, Sensitive drum charging, Electrostatic suction cup, Electrostatic deflection of charged particle beam, 3D printing (application of electro-hydraulic power (EHD) technology), etc.
