DEA high voltage power supply

1. Voltage programming uses differential input

2. Optional RS-232, RS-485, network port control

3.1kV~10kV, 2W~20W

4. High stability, ultra-low ripple, low noise arcing, continuous short circuit protection

5. The temperature coefficient is less than 25ppm/℃, optional 10ppm/C (TC10).

6. The output voltage accuracy is ±2%, when the voltage is given as +10Vdc.

7. Local or remote remote control

8. Can be customized according to user requirements

1. Voltage programming uses differential input

2. Optional RS-232, RS-485, network port control

3.1kV~10kV, 2W~20W

4. High stability, ultra-low ripple, low noise arcing, continuous short circuit protection

5. The temperature coefficient is less than 25ppm/℃, optional 10ppm/C (TC10).

6. The output voltage accuracy is ±2%, when the voltage is given as +10Vdc.

7. Local or remote remote control

8. Can be customized according to user requirements

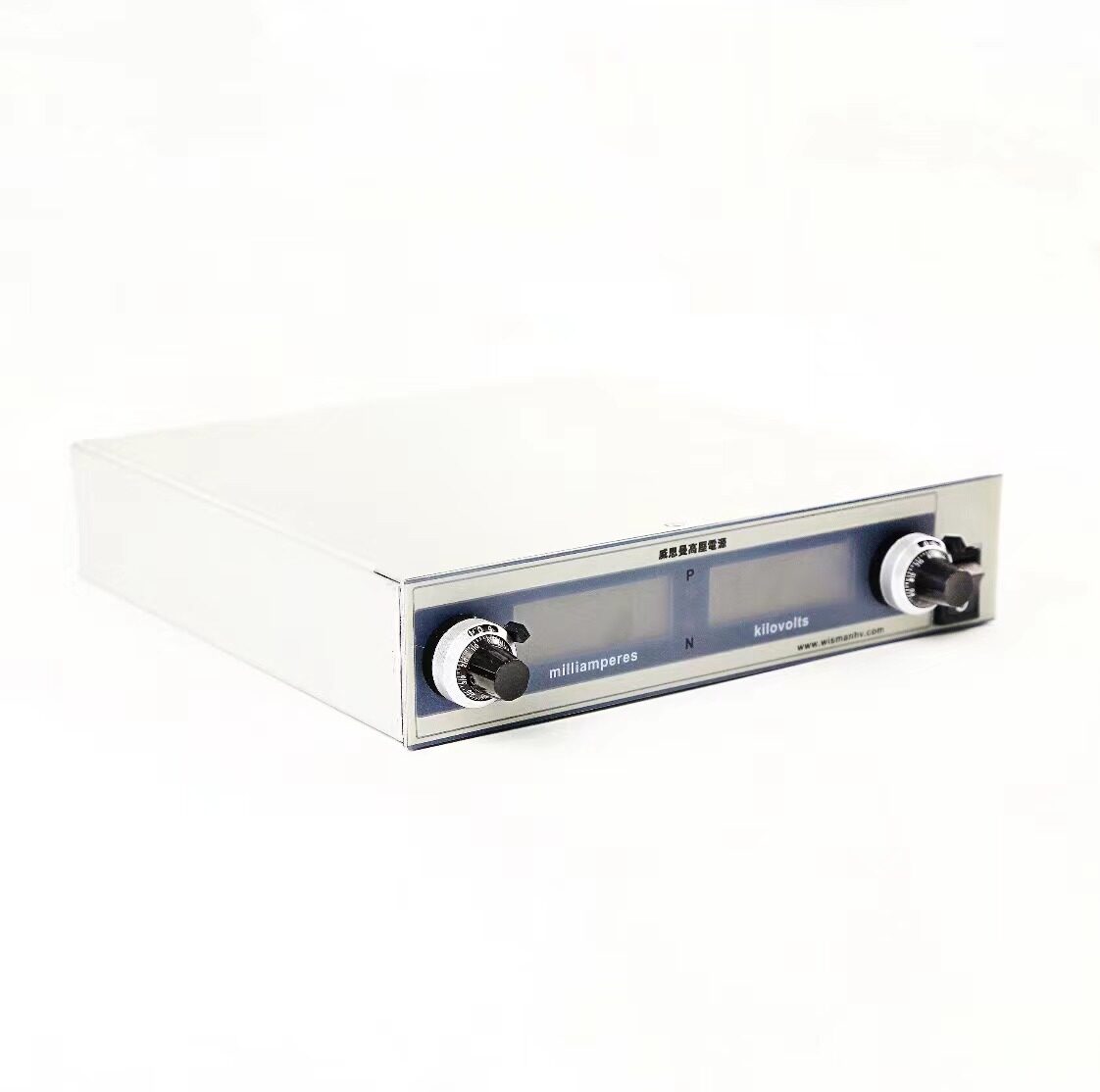

Wisman DEA series high voltage power supply is a handy type high voltage power supply, using proprietary linear power conversion technology, small size, higher efficiency and lower ripple. The voltage programming given signal of the standard DEA series adopts the differential input form, which greatly improves the anti-interference ability to external noise. DEA handy type high-voltage power supply can be precisely measured and controlled internally, externally, and by computer, and RS-232, RS485, and network port interfaces are optional. This series of power supplies have protection functions such as overcurrent, arcing, and short circuit.

Application

Mass Spectrometry

Photomultiplier Tubes

Solid State Detectors

Piezoelectric Devices

Ultrasonic Transducers

Microchannel Plates

Spectroscopy

Scintillation Counters

Electron Multiplier Detectors

Nuclear Instruments

Electrophoresis

DNA Sequencing

Counters

Electron Beams

Ion Beams

Electrostatic chuck

voltage bias

withstand voltage test

pulse power supply

precision lens image intensifier

semiconductor test

capacitor charging

electrospinning

electrostatic discharge test ESD

life science

medical chemical industry

scientific experiment

industrial application
