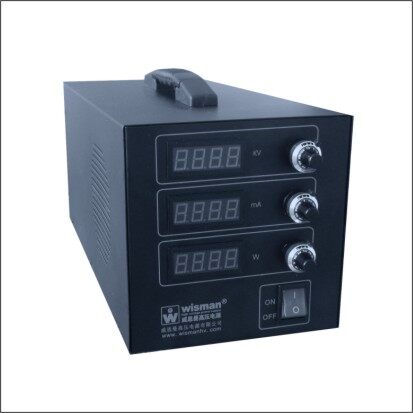

DEC high voltage power supply

1. Input 86Vac-256Vac,2A,single phase

2. Models from 0.5KV to 70kV,100W to 200W

3. low output ripple and noise ＜0.1%p-p

4. high stability 0.02%/8 hour

5. low temperature coefficient 25ppm/℃

6.Optional RS-232, RS485 Digital Interfaces

7. Overvoltage, Arc and short circuit Protected

8. Voltage and current adjustment function

9. Local or remote control, or digital control

10. Safety interlock function

11. OEM customization available

12.Compact design, easy to carry and move

INTRODUCTION
The DEC Series is small dimension high voltage power supply . It features a 0.5kV~70kV high voltage output and 60W ~200W power. it is mainly applied to scientific research and Industry. It can actualized output voltage and current remote control by External potentiometer. The DEC is provided with External voltage monitor and current monitor, safety interlock, short-circuit ,arc, and over voltage protection.

APPLICATIONS
Capacitor Charging

Electronic Component Aging

Insulation Test

High Voltage Testing

Electron Beam /Ion Beam

Focus Ion Beam

Ion Inpouring

Lithography Technology

Electrostatic Applications

Electrostatic Deflexion

lectrospinning

Electrophoresis Capillary Electrophoresis

Microchip Electrophoresis

DNA sequencing

Piezoelectricity material Testing

Science

Laboratory Applications

Industrial Applications.
