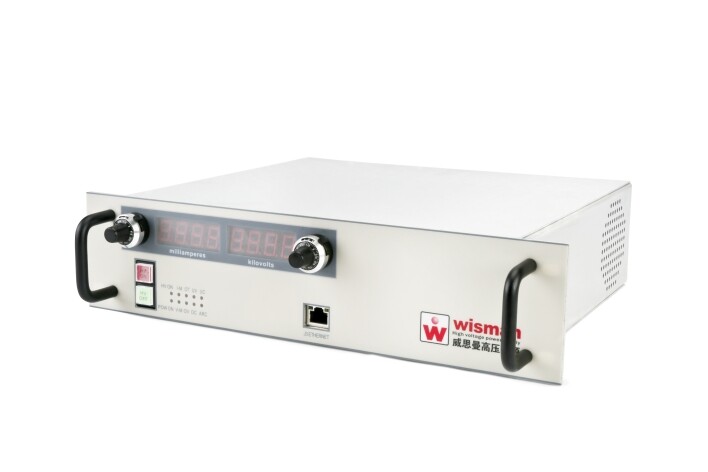

DEF high voltage power supply

1. Power factor corrected input 86Vac-256Vac

2. Models from 1KV to70kV, 200W to 350W

3. low output ripple and noise ＜0.1%p-p

4. high stability 0.02%/8 hour

5. low temperature coefficient 25ppm/℃

6. Ethernet, RS-232, Optional RS485 Digital Interfaces

7. Overvoltage, Arc and short circuit Protected

8. Voltage and current adjustment function

9. Local or remote control, or digital control

10. Safety interlock function

11.Compact design, easy to carry and move

12.Small size 140.00mm x 130.00mm x240.00mm

13. OEM customization available

INTRODUCTION:

Wisman’s DEF series are dedicated high-voltage power supplies for portable chassis with high stability, with voltages ranging from 1kV to 70kV, which can provide up to 350W of continuous power. DEF series is a 350W portable chassis high-voltage power supply with AC wide voltage input of 86Vac~265Vac. The front end has a power factor correction circuit, with a power factor correction capability of 0.99, and automatic cross-control of voltage regulation and current regulation. The DEF series has a good regulation function, and provides positive or negative high voltage output, which can be used for internal, external and computer precision measurement,RS-232, RS-485, ETHERNET digital control interfaces are optional. DEF series has protection functions such as overvoltage, overcurrent, arcing, and safety interlock,which can work easily under complex conditions.

APPLICATION:

Accelerator

Capacitor charging

Electron beam power supply

Ion beam power supply

High-energy particle injection

X-ray tube

Electrostatic oiling

Electrostatic spinning

Electrostatic spraying

Electrostatic flocking

Air purification

Electrostatic smoke removal

Electrostatic dust removal

Industrial equipment

Electronics Components aging

Insulation testing

Ion implantation

Electrostatic application

Laser

Scientific research.
