DF high voltage power supply

1. Input 220Vac±10%,38A

2. AC/DC output voltage 120KV, output power 3kW,4kW,6.4kW

4. low output ripple and noise ＜0.1%p-p

5. high stability 0.02%/8 hour

6. low temperature coefficient 25ppm/℃

8. Ethernet, RS-232, Optional RS485 Digital Interfaces

9. Overvoltage, Arc and short circuit Protected

10. Voltage and current adjustment function

11. Local or remote control, or digital control

12. Safety interlock function

14. OEM customization available

15. CE certification

INTRODUCTION

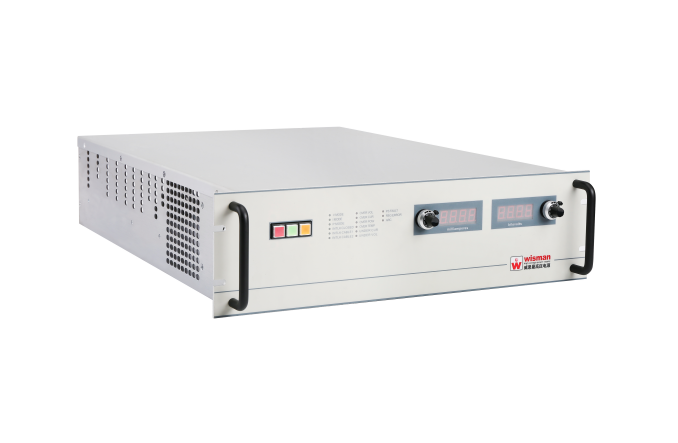

Wisman DF series is a high performance 19 ‘standard rack mounted 3kW,4kW,6.4kW high voltage power supply, DF series has a complete protection system. Remote control or local control, the front panel has voltage and current display, high voltage output end overvoltage, overcurrent, short circuit protection, arc, overtemperature protection and safety interlock and other functions. Wide range of adjustments and flexible multiple optional features.

APPLICATIONS
Ion Beam Implantation

Accelerator

Capacitor Charging

Electronic Component Aging

Insulation Test

High Voltage Testing

Electron Beam

Ion Beam

Focus Ion Beam

Lithography Technology

Electrostatic Applications

Semiconductor Processing

Electron Beam Welding

High Power RF Transmitters

Electrostatic Precipitators

X-Ray Systems

Science

Laboratory Applications

Industrial Applications.

OPTIONAL FUNCTION

AOL overload shutdown FG floating ground
CPC constant power output FGLL floating ground low leakage
LR low ripple NSS no slow start
SS(X) Custom slow start ATP over power shutdown
CPC constant power AT arc shutdown
DB 2 group output NAD without arc protection
FCV voltage fine adjustment RFR remote reset
