DG high voltage power supply

1. Input 360-528Vac, three phase 25 amps

2. Models from 1KV to 300kV,12kW

3. Parallel Capability 24kW, 36kW, 48kW…100kW

4. low output ripple and noise ＜0.1%p-p

5. high stability 0.02%/8 hour

6. low temperature coefficient 25ppm/℃

7. Ethernet, RS-232, Optional RS485 Digital Interfaces

8. Overvoltage, Arc and short circuit Protected

9. Voltage and current adjustment function

10. Local or remote control, or digital control

11. Safety interlock function

12. OEM customization available

13. CE certification

INTRODUCTION

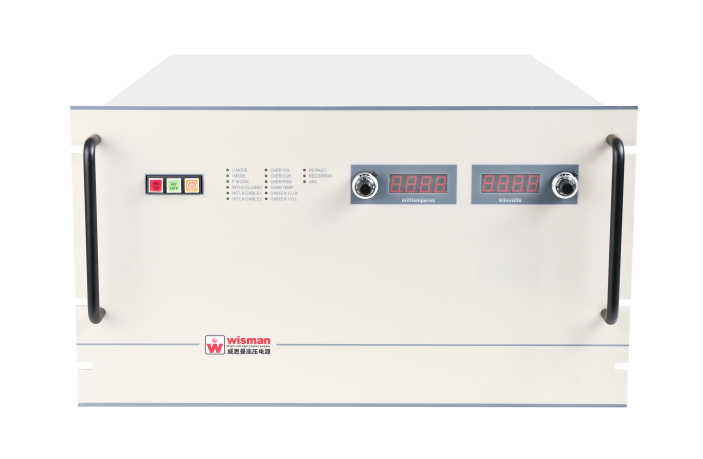

Wisman’s DG series is a high-performance 19” standard rack-mounted high-voltage power supply. The DG series has a complete protection system. It can be controlled remotely or locally. The front panel has voltage and current display, high-voltage output terminal over-voltage, over-current, short-circuit protection, arcing, over-temperature protection and safety interlocking functions. Wisman’s DG series is with wide range of adjustment and flexible multiple optional functions.

APPLICATIONS
Ion Beam Implantation

Accelerator

Capacitor Charging

Electronic Component Aging

Insulation Test

High Voltage Testing

Electron Beam

Ion Beam

Focus Ion Beam

Lithography Technology

Electrostatic Applications

Semiconductor Processing

Electron Beam Welding

High Power RF Transmitters

Electrostatic Precipitators

X-Ray Systems

Science Laboratory Applications

Industrial Applications.
