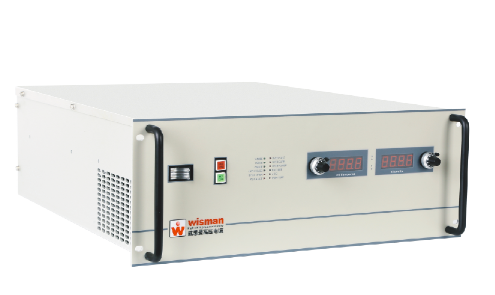

DH high voltage power supply

1. Input 220Vac±10%,19A

2. Models from 150KV to 300kV, 2kW

4. low output ripple and noise ＜0.1%p-p

5. high stability 0.02%/8 hour

6. low temperature coefficient 25ppm/℃

8. Ethernet, RS-232, Optional RS485 Digital Interfaces

9. Overvoltage, Arc and short circuit Protected

10. Voltage and current adjustment function

11. Local or remote control, or digital control

12. Safety interlock function

14. OEM customization available

15. CE certification

INTRODUCTION

Wisman’s DH Series of 2kW high voltage power supplies: outputs ranging from 1kV to 300kV, positive or negative polarities in 4 different models .The standard Ethernet and RS-232 digital interface. You can simplify integrating the DH into your system design.Wisman’s DH series is a high-performance 19 ‘standard rack type high-voltage power supply, and DH series has a complete protection system. It can be controlled remotely or locally. The front panel has the functions of voltage and current display. over-voltage, over-current, short circuit protection, arcing, over temperature protection, safety interlock, etc. Wide range adjustment and flexible multiple optional functions.Many operational features can be configured by the user to suit their particular requirements.

Perfect for electron-beam and ion-beam systems, ion implantation, and X-ray systems, DH uses power switching IGBTs to ensure efficient operation over the full operating range. The series delivers exemplary performance in harsh electrical environments and an exceptionally high-packing density for high voltage power supplies.

APPLICATIONS
Ion Beam Implantation

C

High Voltage Testing

Electron Beam

Ion Beam

Focus Ion Beam

Lithography Technology

Electrostatic Applications

Semiconductor Processing

Electron Beam Welding

High Power RF Transmitters

Electrostatic Precipitators

X-Ray Systems

Science

Laboratory Applications

Industrial Applications.
