DL high voltage power supply

1. Input 220Vac±10%,Optional 115Vac

2. Models from 1KV to 130kV, 10W to 1.2kW

4. low output ripple and noise ＜0.1%p-p

5. high stability 0.02%/8 hour

6. low temperature coefficient 25ppm/℃

8. Ethernet, RS-232, Optional RS485 Digital Interfaces

9. Overvoltage, Arc and short circuit Protected

10. Voltage and current adjustment function

11. Local or remote control, or digital control

12. Safety interlock function

14. OEM customization available

15. CE certification

INTRODUCTION

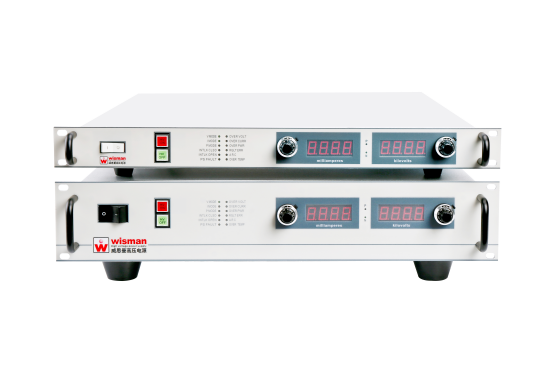

Wisman’s DL series high voltage power supply is a high-performance 19” standard rack-mounted high-voltage power supply. DL series has a complete protection system,which can be controlled remotely or locally. Its front panel has voltage and current display, high-voltage output terminal over-voltage, over-current, short-circuit protection, arcing, over-temperature protection and safety interlock functions with wide range of adjustment and flexible multiple optional functions.

1U maximum output power 400W, 600W, 750W optional, 1U maximum output voltage 130kV.

APPLICATIONS
Ion Beam Implantation

Accelerator

Capacitor Charging

Electronic Component Aging

Insulation Test

High Voltage Testing

Electron Beam

Ion Beam

Focus Ion Beam

Lithography Technology

Electrostatic Applications

Semiconductor Processing

Electron Beam Welding

High Power RF Transmitters

Electrostatic Precipitators

X-Ray Systems,Science

Laboratory Applications

Industrial Applications.

OPTIONAL　FUNCTIONS

AOL overload shutdown
FG floating ground
CPC constant power output
FGLL floating ground low leakage
LR low ripple
NSS no slow start
SS(X) custom slow start
ATP over power shutdown
CPC constant power
AT Arc Shutdown
DB 2 group output
NAD no arc protection
FCV voltage fine adjustment
RFR remote reset
