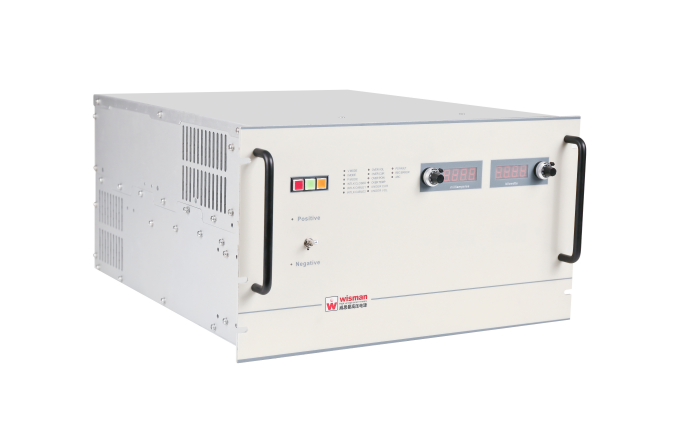

DR high voltage power supply

1. Input 360-528Vac, three phase 12.5 amps

2. Models from 1KV to 150kV,12kW

3. Reversible Polarity Standard up to 150kV

4. low output ripple and noise ＜0.1%p-p

5. high stability 0.02%/8 hour

6. low temperature coefficient 25ppm/℃

7. Ethernet, RS-232, Optional RS485 Digital Interfaces

8. Overvoltage, Arc and short circuit Protected

9. Voltage and current adjustment function

10. Local or remote control, or digital control

11. Safety interlock function

12. OEM customization available

13. CE certification

INTRODUCTION

Output polarity can be reversed

Wisman’s DR series of 6kW polarity reversible high voltage power supplies are available in positive or negative polarities in 19 different models with outputs ranging from ±1kV to ±150kV. DR series’ front panel can realize local control easily, while the analog interface of the back panel can realize remote control. The standard Ethernet and digital interfaces RS-232 can be designed to integrate the DR series into yours system.

Wisman’s DR series adopts IGBT inverter,which is suitable for all kinds of harsh applications like semiconductor processing and vacuum deposition. Most operational functions of Wisman’s DR series can be configured by the user to meet their particular requirements.

DR Series power supply adopts wisman’s unique external polarity reversible design, polarity reversible by changing external wiring.

APPLICATIONS
Ion Beam Implantation

Accelerator

Capacitor Charging

Electronic Component Aging

Insulation Test

High Voltage Testing

Electron Beam

Ion Beam

Focus Ion Beam

Lithography Technology

Electrostatic Applications

Semiconductor Processing

Electron Beam Welding

High Power RF Transmitters

Electrostatic Precipitators

X-Ray Systems

Science

Laboratory Applications

Industrial Applications.
