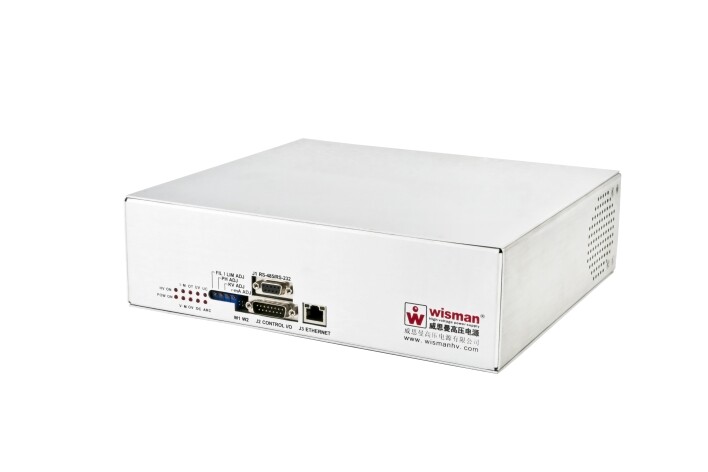

MEF high voltage power supply

1. Power factor corrected input 86Vac~265Vac

2. Models from1KV to 70KV, 200W,350W

3. Size 80mm x 254mm x280mm

4. Overvoltage, Arc and short circuit Protected

5. Voltage and current adjustment function

6. Local or remote control

7. Safety interlock function

8. OEM customization available

9. Optional Ethernet, RS-232, RS-485 Interfaces

10. High stability can be customized

INTRODUCTION

Wisman’s MEF series is a dedicated high-stability modular, the voltage is from 1kV to 70kV, can provide up to 350W of continuous power. The MEF series is a 350W modular with AC wide voltage input of 86Vac~265Vac. The front end has a power factor correction circuit with a power factor correction capability of 0.99, and automatic cross control of voltage regulation and current regulation. It has good regulation performance and can provide positive or negative high-voltage output,MEF can be controlled by internal,external and computer with RS-232, RS-485, ETHERNET digital control interface. It has the over-voltage, over-current, arc drawing, safety interlock and other protection functions. MEF can work easily under the most severe conditions.

APPLICATION:

Ion implantation

Accelerator

Capacitor charging

Electron beam power supply

Ion beam power supply

High-energy particle injection

X-ray tube, electrostatic oiling

Electrostatic spinning

Electrostatic spraying

Electrostatic flocking, air purification

Electrostatic smoke removal

Electrostatic dust removal

Industrial equipment

Electronics Component aging

Insulation testing

Ion implantation

Electrostatic application laser

Scientific research.
