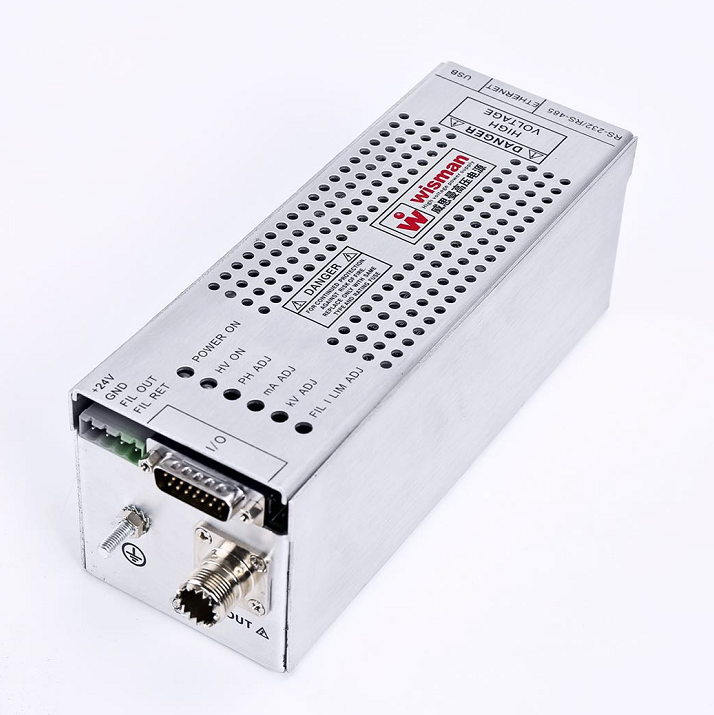

MN high voltage power supply

1. Models from1kV to 50kV, 10W,30W,50W

2. Low output ripple and noise ＜ 0.1% P-P

3. High stability 0.02%/8 hours

4. Low temperature coefficient 0.0025%/ ℃

5. Arc and Short Circuit Protected

6. External potentiometer or external control voltage to set.

7. Optional RS-232, Ethernet interface, RS-485

8. Positive or negative output

9. Small size, Low noise , 6 -sided metal shielding

10. OEM customization available

INTRODUCTION:

Wisman MN series high-voltage power supply has good regulation performance and with output up to 50KV. MN series power supply has functions of overvoltage, short circuit protection and safety interlock. Providing optional network port, RS-232 or RS-485 interface.

Optional features: RS485 RS-485 interface,NAT does not turn off when arcing, AT(X) Arc shutdown (1-8 arc)

APPLICATION:

High voltage test

Electron beam/ion beam

Mass spectrometry

Electrostatic chuck (ESC)

ESD special for electrostatic discharge

Scintillator

Electron gun

Ion gun

Nuclear instrument

Electrostatic lens

Spectroscopy

Electrophoresis

Electrostatic spinning

Electrostatic flocking

Capacitor Charging

Comprehensive laboratory use

DNA sequencing

Protein extraction

Electrostatic printing

High voltage bias

Medical and chemical engineering

Scientific experiments

Industrial applications.
