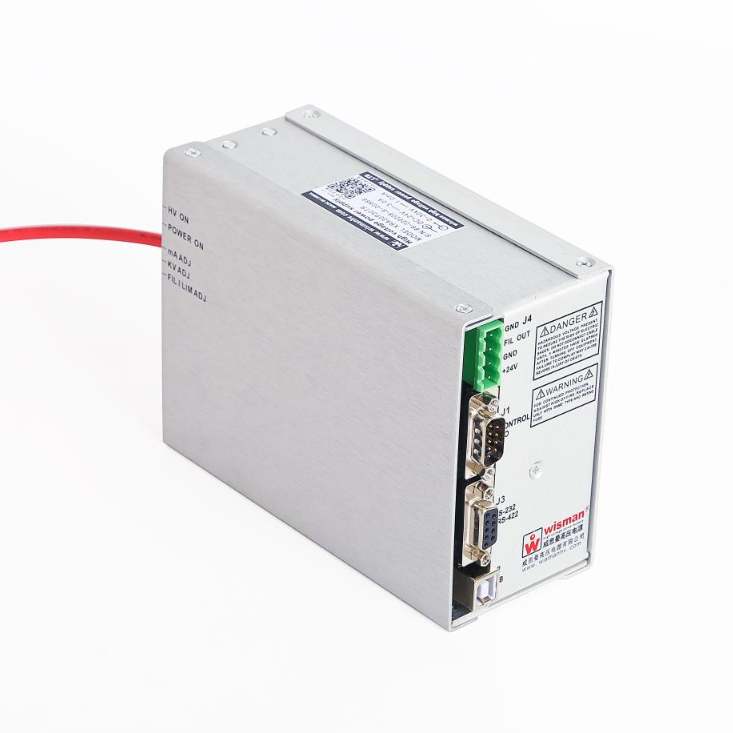

MRA high voltage power supply

1. Models from 3kV to 30kV, 6W to 100W

2. Option usb2.0,RS-232 or RS-422 serial interface

3. Low temperature coefficient 25ppm/ ℃

4. Low output ripple and noise 0.001% p-p

5. High stability 0.01% per hour

6. Local and remote voltage programming

7. Positive or negative polarity

8. Arc and short circuit protection

9. Safety interlock circuit

10. Compact size

11. OEM customization available

SUMMARY
Wisman’s new MRA series is a family of high voltage 100Watt modules that provide output voltages ranging from 0.6kV to 30kV.
The MRA Series is the result of Wisman’s exceptional high voltage packaging and surface mount fabrication techniques coupled with proprietary encapsulation technology producing this ultra-compact module. Wisman’s MRA Series of 100 watt high voltage power supplies are based on a proprietary resonant fly back power conversion topology that provides over 80% efficiency. Offering tight regulation, high stability and low ripple, the MRA provides users local and remote analog control to set voltage and current, both voltage and current regulation with automatic crossover. The robust design of MRA Series along with comprehensive arc and short circuit protection allow operation in the most demanding environments. An optional RS-485, RS-232 interface is available.

Wisman’s proprietary HV technology coupled with SMT circuitry results in an ultra compact and lightweight module that is available as either a positive or negative supply, which is ideal for OEM applications

TYPICAL APPLICATIONS：
High voltage testing
Electron Beam/Ion Beam
Mass spectrometry
Electrostatic chuck(ESC)
Scintillators
Electron Guns
Ion Guns、Nuclear
Instruments
Electrostatic lenses
Spectroscopy
Electrophoresis
Electrospinning
Capacitor charging
General Laboratory Usage
DNA sequencing
protein extraction
electrostatic printing
high voltage bias
medical industry
scientific experiments
industrial applications

OPTIONS：

LR(X) Low Ripple 0.25%、0.1%、0.006%、0.003% 、0.001%

CA20N WISMAN CA20N connector.
USB USB Interface
RS232 RS-232 Interface
RS422 RS-422 Interface
NAT ARC,does not shutdown
AT(X) ARC, shutdown (option 1-8 arc)

CPC Constant Power Control
