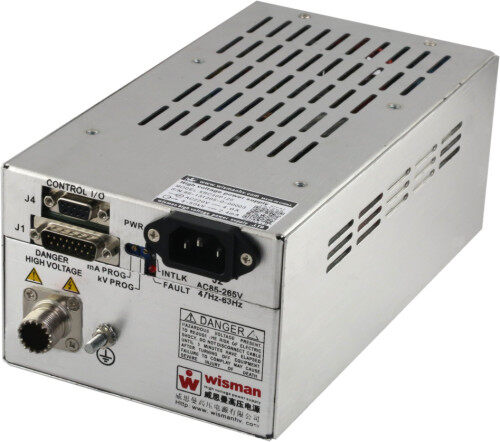

MRC high voltage power supply

1. Power factor corrected input 86Vac~265Vac

2. Models from 1kV to 70kV, 120W

3. Low output ripple and noise ≤ 0.1% P-P

4. High stability 0.02% every 8 hours

5. Low temperature coefficient 0.0025%/ ℃

6. Arc and short circuit Protected

7. External potentiometer or external control voltage to set.

8. Optional USB2.0, RS-232, RS-422 control,

9. Positive or negative output

10. OEM customization available

INTRODUCTION

Wisman MRC series are high-stability with positive or negative high voltage output. The MRC series can be accurately measured and controlled internally, externally,or controlled by a computer. The MRC series has the protection function includes overvoltage, overcurrent, arcing, and safety interlock.

APPLICATIONS
High voltage testing

Electron Beam/Ion Beam

Massspectrometry

Electrostatic chuck(ESC)

Scintillators

Electron Guns

Ion Guns

Nuclear Instruments

Electrostatic lenses

ctroscopy

Electrophoresis

Electrospinning

Capacitor charging

General Laboratory Usage

DNA encing

Protein extraction

Electrostatic printing

High voltage bias

Medical industry

Scientifice xperiments

Industrial applications.
