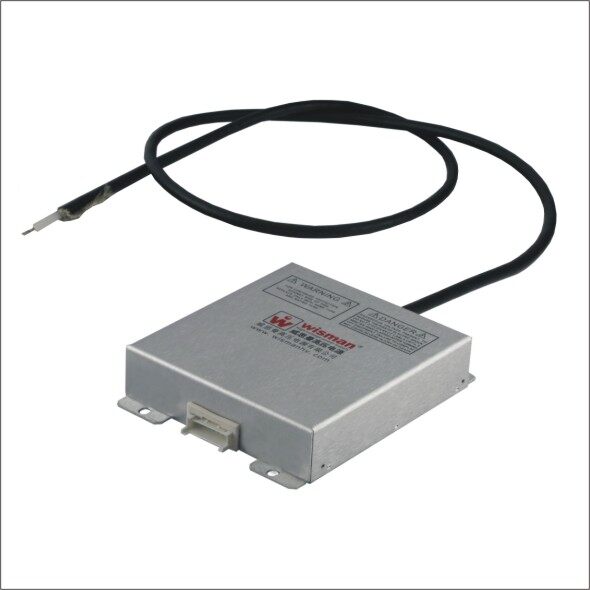

PM high voltage power supply

1. Models from1kV to 30kV, 10W MAX

2. Low output ripple and noise ＜ 2mV P-P

3. High stability 0.001% per hour

4. Low temperature coefficient 0.001%/℃

5. Arc and Short Circuit Protected

6. External potentiometer or external control voltage to set.

7. Optional RS-232, RS-485 control, address can be set and search

8. Positive or negative output

9. Small size, Low noise, 6 -sided metal shielding

10. OEM customization available

11.CE certification

INTRODUCTION
Wisman’s PM series has six-sided shielding and high performance designed with hybrid topology of linear and switch mode power conversion techniques delivering lower noise with higher efficiency. It is applied to Photomultiplier Tubes(PMT),Solid state detectors,ultrasonic transducers and so on. PM series can be controlled by an external or internal potentiometer or a computer.

RS-232 or RS-485 interface are both available. PM module is available both positive or negative supply , which is ideal for OEM customers.

APPLICATION

Mass spectrometry
Photomultiplier Tubes(PMT)
Microchannel plates(MCP)
Proportional Counters
GM Tube
Avalanche Photo Diode (APD)
Solid state detectors
Ionization Chambers
gas chromatography
Electron multiplier
Detectors
Nuclear Instruments
Electrophoresis
DNA sequencing
Radiation counter
Electron Beam
Ion Beam,High
voltage bias
Hipot Testing
Precision Lenses Image Intensifiers
Semicon-ductor Testing
Electrostatic discharge Testing
Provides power to the pulse power
Capacitor Discharging
Life Sciences
Medical chemical Applications
Science
Laboratory Applications
Industrial Applications
