PRB high voltage power supply

INTRODUCTION

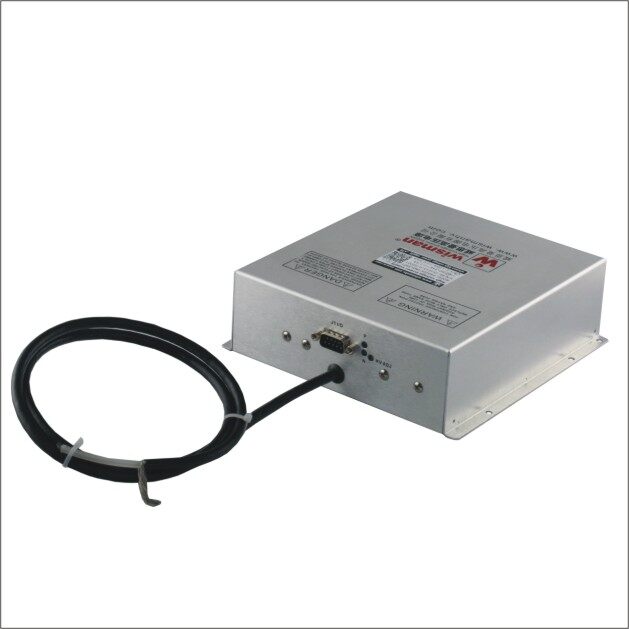

Wisman’s PRB  modular high voltage power supply is ideal for OEM usage. It is specifically designed to meet the needs of applications requiring a hot switched reversible output voltage. The output polarity of the unit can be quickly and safely reversed via the Polarity Control Signal provided on the interface connecter MAX -20KV to +20KV. Both the output voltage and current are fully adjustable via ground referenced remote programming signals such that 0 to 10Vdc corresponds to 0 to 100% rated output voltage and current. Remote motioning functionality is provided by voltage and current test points such that 0 to 10Vdc corresponds to 0 to 100% rated voltage and current.Optional USB 2.0、RS-232  or RS-485  is available .

APPLICATIONS：
Electrospinning
Mass Spectrometry
Capillary Electrophoresis
Electrostatic Research
DNA Analysis
Microchip Electrophoresis
Electrostatic Chuck (E-Chuck)

OPTIONS：

USB          USB Interface

RS232      RS-232 Interface
RS485      RS-485 Interface
5VPM        0 to 5 Volt Programming and Monitor Scaling

SPECIFICATIONS：

Input: +24Vdc±10% .

Output: ±5KV,±8KV,±10KV,±15KV,±20KV

Polarity: Auto reversible via command
Power: 10 watts, maximum
Voltage Regulation:
Load: 0.01% of output voltage no load to full load.
Line: ±0.01% for ±10% change in input voltage.
Ripple:  0.1% Vp-p
Stability: 0.02% per 8 hours after 1/2 hour warm-up.
Temperature coefficient: 25ppm
Environmental:
Operational: 0°C to +40°C
Storage: -40°C to +85°C
Humidity: 10% to 85% RH, non condensing
Cooling: Free air Convection
Dimensions:
10KV unit: 1.63”H x 6.61”W x 4.53”D  (41.5mm x 168.00mm x 115.00mm); 1.4kg

20KV unit: 2.05”H x 6.61”W x 6.50”D  (52.00mm x 168.00mm x 165.00mm);   2.5kg

Interface Connector: 9 pin male D connector
