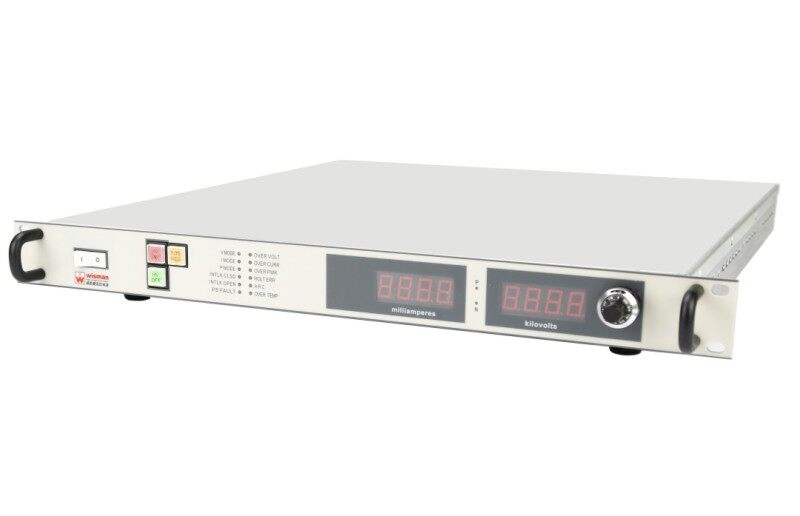

PRE high voltage power supply

INTRODUCTION
Wisman’s PRE  modular high voltage power supply is ideal for OEM usage. It is specifically designed to meet the needs of applications requiring a hot switched reversible output voltage. The output polarity of the unit can be quickly and safely reversed via the Polarity Control Signal provided on the interface connecter. Both the output voltage and current are fully adjustable via ground referenced remote programming signals such that 0 to 10Vdc corresponds to 0 to 100% rated output voltage and current. Remote motioning functionality is provided by voltage and current test points such that 0 to 10Vdc corresponds to 0 to 100% rated voltage and current. Additionally remote polarity and mode indicators provide a compre-hensive overview of power supply operation.An optionalUSB 2.0, RS-232  or RS-422 interface is available .

APPLICATIONS：
Electrospinning
Mass Spectrometry
Capillary Electrophoresis
Electrostatic Research
DNA Analysis
Microchip Electrophoresis
Electrostatic Chuck (E-Chuck)

OPTIONS：

USB          USB Interface
RS232      RS-232 Interface

RS422      RS-422 Interface

5VPM        0 to 5 Volt Programming and Monitor Scaling

SPECIFICATIONS：
Input: AC220V±10% .

Output: ±5KV,±10KV,±15KV,±20KV,±25KV,±30KV
Polarity: Auto reversible via command
Power: 10 watts, maximum
Voltage Regulation:
Load: 0.01% of output voltage no load to full load.
Line: ±0.01% for ±10% change in input voltage.
Ripple: 0.1% Vp-p
Stability: 0.02% per 8 hours after 1/2 hour warm-up.
Environmental: Operational: 0°C to +40°C
Storage: -40°C to +85°C
Humidity:  10% to 85% RH, non condensing
Cooling:    Free air Convection
Dimensions: 1.73”H x 19.00”W x 17.42”D(44mm x 482.5mm x 442.5mm).
Interface Connector: 25 pin male D connector
