SDF high voltage power supply

1. Input 220Vac±10%, single phase 76 amps

2. Models from 2KV to 200kV,8kW

3. Bipolar, positive, negative, easy to combine

5. low output ripple and noise ＜0.1%p-p

6. high stability 0.02%/8 hour

7. low temperature coefficient 25ppm/℃

8. Ethernet, RS-232, Optional RS485 Digital Interfaces

9. Overvoltage, Arc and short circuit Protected

10. Voltage and current adjustment function

11. Local or remote control, or digital control

12. Safety interlock function

13. OEM customization available

14. CE certification

INTRODUCTION:

SDF is one power supply not two.The upper and lower layers cannot be separated. Although the SDF series is one power supply, it can be used as three power supplies.

One Wisman SDF can be used as three. Both positive voltage 4KW and negative voltage 4KW can be used alone,and positive and negative synchronous output can also be used as 8KW. Wisman’s has the unique function with positive and negative synchronization, remote optical fiber communication anti-interference.

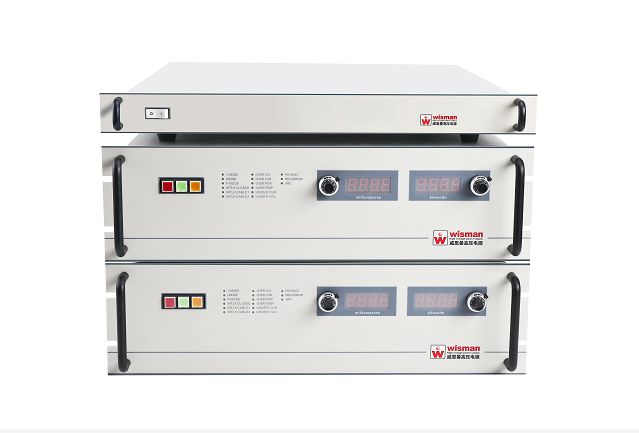

Wisman’s SDF series are high-performance 19′ standard rack-mounted high-voltage power supplies. It has a complete protection system and can be controlled remotely or locally. The front panel has voltage and current display, high-voltage output terminal has the over-voltage, over-current, short-circuit protection, arcing, over-temperature protection and safety interlocking functions. With wide range of adjustments and flexible multiple optional functions.

Application:

Ion implantation

Capacitor charging

Pulse power

Accelerator

Electron beam power supply

Ion beam power supply

High-energy particle injection

X-ray tube

Electron beam welding machine

Semiconductor industry

Electron beam system

Ion beam system

X-ray equipment

Laser

High voltage pulse generator bias

High voltage amplifier bias

Electrostatic precipitation

Chemical purification

Ion implantation

Ion vapor deposition

Chemical vapor deposition

Electron beam welding

Electron gun

High voltage testing

Particle accelerator

Industrial equipment

Electronic components aging

Insulation testing

Ion implantation

Electrostatic application

Scientific research.
