SDL high voltage power supply

1. Input 220Vac±10%, single phase 38 amps

2. Models from 2KV to 260kV,4kW

3. Bipolar, positive, negative, easy to combine

5. low output ripple and noise ＜0.1%p-p

6. high stability 0.02%/8 hour

7. low temperature coefficient 25ppm/℃

8. Ethernet, RS-232, Optional RS485 Digital Interfaces

9. Overvoltage, Arc and short circuit Protected

10. Voltage and current adjustment function

11. Local or remote control, or digital control

12. Safety interlock function

13. OEM customization available

14. CE certification

INTRODUCTION:

One Wisman’s SDL can be used as three. Both the positive voltage and negative voltage can be used separately, and it can also be used for positive and negative synchronous output. Wisman’s unique positive and negative synchronization, long-distance optical fiber communication anti-interference.

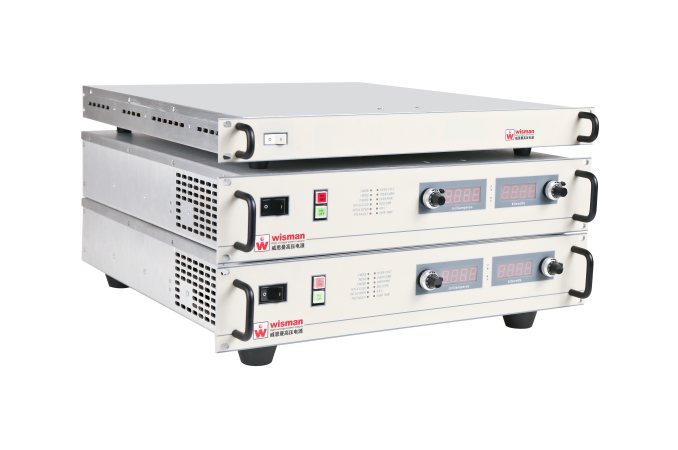

Wisman’s SDL series are high-performance 19′ standard rack-mounted high-voltage power supplies. It has a complete protection system and can be controlled remotely or locally. The front panel has voltage and current display.High-voltage output terminal has over-voltage, over-current, short-circuit protection, arcing, over-temperature protection and safety interlocking functions. With wide range of adjustment and flexible multiple optional functions.

APPLICATION:

Ion implantation

Capacitor charging

Pulse power

Accelerator

Electron beam power supply

Ion beam power supply

High-energy particle injection

X-ray tube

Electron beam welding machine

Semiconductor industry

Electron beam system

Ion beam system

X-ray equipment

Laser

High voltage pulse generator bias

High voltage amplifier bias

Electrostatic precipitation

Chemical purification

Ion implantation

Ion vapor deposition

Chemical vapor deposition

Electron beam welding

Electron gun

High voltage testing

Particle accelerator

Industrial equipment

Electronic components aging

Insulation testing

Ion implantation

Electrostatic application

Lase

Scientific research.
