TB high voltage power supply

1. Power factor corrected input 86Vac~265Vac

2. Models from 200KV to 500kV,4kW

3. Air Insulated,Low energy storage,Fast response

4. Low starting voltage,100V

5. Operation is guaranteed down to zero voltage

6. low output ripple and noise ＜0.01%p-p

7. high stability 0.05%/8 hour

8. low temperature coefficient 25ppm/℃

9. Optional Ethernet, RS-232, RS485 Digital Interfaces

10. Overvoltage, Arc and short circuit Protected

11. Constant Voltage/Constant Current Operation

12. Local or remote control, or digital control

13. Safety interlock function

14. OEM customization available

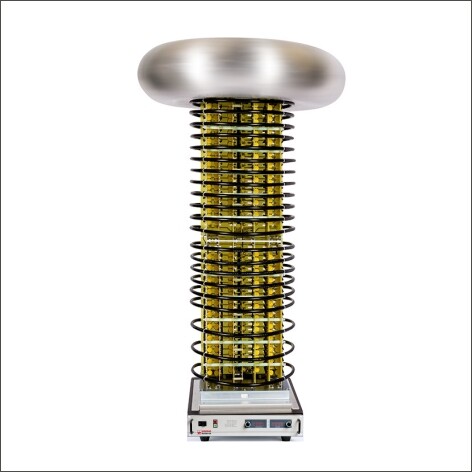

INTRODUCTION
Wisman TB series is a high-performance tower air-insulated high-voltage power supply dedicated for accelerator and capacitor charging and discharging. The TB series has a complete protection system. It can simulate remote control or computer remote control, constant voltage and constant current automatic cross control, high voltage output terminal overvoltage, overcurrent, short circuit protection, arcing, overtemperature protection and safety interlocking functions. Wide range of adjustment and flexible multiple optional functions.

APPLICATIONS
Capacitor Charging

Electronic Component Aging

Insulation Test

High Voltage Testing

Electron Beam /Ion Beam

Focus Ion Beam

Ion Inpouring

Lithography Technology

Electrostatic Applications

Electrostatic Deflexion

lectrospinning

Electrophores is Capillary Electrophoresis

Science

Laboratory Applications

Industrial Applications.
