XAA Series X Ray Generator

1. Output voltage 30KV MAX, Output power 100W MAX

2. Optional USB2.0, RS-232, RS485 digital interfaces

3. High stability 10ppm/hour, 20ppm/8 hours, 100ppm/1000 hours

4. Output voltage from 4.9KV-30KV MAX, low ripple 10ppm

5. Integrated adjustable filament power supply

6. Overvoltage, Arc and short circuit Protected

7. Voltage and current adjustment function

8. Local or remote remote control, or digital control

9. Safety interlock function

10. OEM customization available

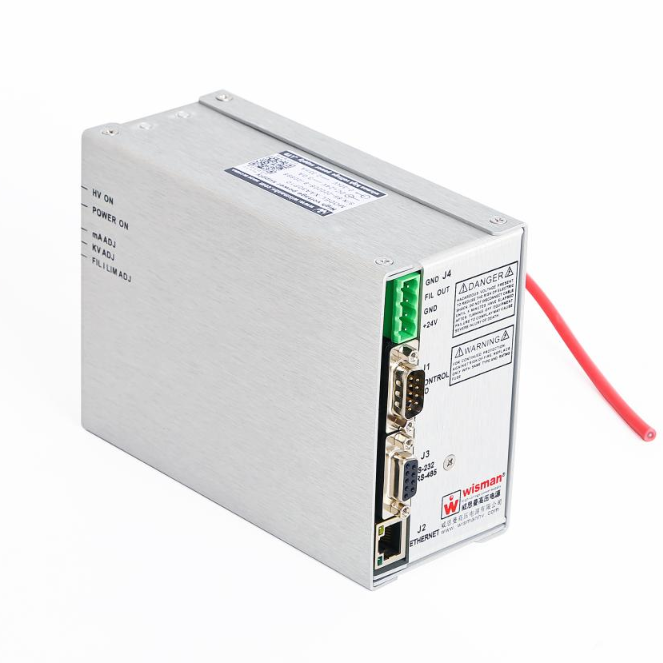

Wisman XAA series high-voltage power supplies are small in size and used in X-ray tubes, with good regulation performance, low ripple, and high stability. The maximum output voltage of XAA series high voltage power supply is 30KV and the maximum power is 100W. Internally integrated 0-5.5V, adjustable DC filament power supply between 0A and 3.5A. The high-voltage output terminal of XAA series power supply has functions such as overvoltage, short circuit protection and safety interlock. Local or remote remote control, or digital control, provides optional USB2.0, RS-232 or RS-422 interface.

Features:

1. DC/DC, output voltage up to 30kV, output power up to 20W.

2. The product is small in size and complete in specifications.

3. Low ripple 10ppm, low temperature coefficient 10ppm, high stability 10ppm/hour, 20ppm/8 hours, 100ppm/1000 hours.

4. Optional USB2.0, RS-232, RS485 digital communication

5. 4.9 KV, 10KV, 20KV, 25KV, 30KV, 5 kinds of highest voltage output optional

6. 5W, 10W, 15W, 20W and other 4 kinds of output power optional

7. Adjustable integrated filament supply

8. Local or remote control, or digital control

Application:

X-ray fluorescence analysis, Film thickness measurement, Aluminum strip thickness measurement, Aluminum plate thickness measurement, Paper thickness measurement, Aluminum foil thickness measurement, Online elemental analysis, X-ray fluoroscopy, Particle size detection, Density measurement, Paper composition detection, In-line process control, ROHS inspection, Thickness measurement, Inspection systems for printed circuit boards, Radiography, X-ray imaging, Multilayer PCB alignment, particle size inspection, density measurement, process control, X-ray spectroscopy, soldering tips, wire tips detection.

Corresponding X-ray tube (cathode grounded): Kevex, Oxford, RTW, Superior, Varian, Trufocus and several domestic brands.

Features:
Input: 24V±1% DC, current 3.0A MAX.
Output: 4.9KV, 7.5KV, 10KV, 12KV, 15KV, 20KV, 25KV, 30KV, 8 kinds of highest voltage output optional
Output power: 6W, 9W, 15W, 30W, 60W, 75W, 100W, 6 kinds of output power optional .

Stability:

Half an hour after power on, ≤0.001%/1 hour, ≤0.002%/8 hours, ≤0.01%/1000 hours.

Ripple Voltage:

Standard: 0.001% pp of maximum rated output voltage.
