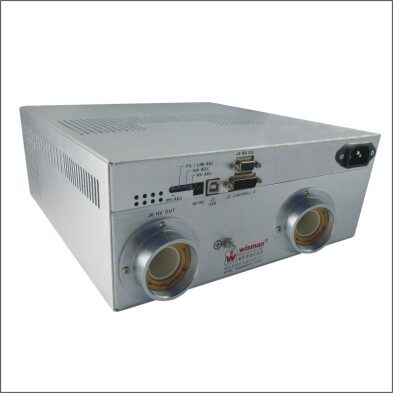

XDB Series X Ray Generator

1. Power factor corrected input 86Vac~265Vac

2. Models from ±20KV to ±160kV, 300W to 1.2kW

3. Integrated Floating Filament Supply 5A@10Vdc

4. low output ripple and noise ＜0.1%p-p

5. high stability 0.02%/8 hour

6. low temperature coefficient 25ppm/℃

7. Optional Ethernet, RS-232, RS485 Digital Interfaces

8. Overvoltage, Arc and short circuit Protected

9. Voltage and current adjustment function

10. Local or remote control, or digital control

11. Safety interlock function

12. OEM customization available

13. Bipolar output X-Ray generators

INTRODUCTION

Wisman’s XDB series of bipolar x-ray generators are designed for all kinds of x-ray tubes from different manufacturers. It is the best choice of OEM applications, with output voltage 320kV(±160kV), output power 300W, 600W and1200 watts option.Wisman’s XDB series x-ray generator adopts wide voltage input, small package size, standard analog which makes it easier to integrate the XDB series into your x-ray analysis system. DSP based control circuitry provides excellent regulation of emission current, along with standing stability performance. Wisman’s XDB series x-ray generator is with the interfaces of RS-232, RS-485, USB2.0 and ET option.

APPLICATIONS
Plastics Sorting

Crystal Inspection

Plating Measurement

Thickness Gauging

Food Inspection

Mineral Analysis X-Ray Fluorescence

X-Ray Diffraction
