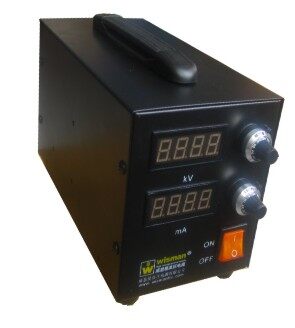

XEL Series X Ray Generator

1. Input 86Vac-256Vac,1A,single phase

2.Models from 10KV to 50kV, 10W to 100W

3. Integrated Filament Supply 3.5A@5.5Vdc

4. low output ripple and noise ＜0.1%p-p

5. high stability 0.02%/8 hour

6. low temperature coefficient 25ppm/℃

7. Compact design, easy to carry and move

8. Optional Ethernet, RS-232, RS485 Digital Interfaces

9. Overvoltage, Arc and short circuit Protected

10. Voltage and current adjustment function

11. Local or remote control, or digital control

12. Safety interlock function

13.Small size 140.00mm x 130.00mm x240.00mm

14. OEM customization available

INTRODUCTION:

Wisman’s XEL Series of regulated x-ray high voltage power supplies offers output voltages to 50kV and incorporate a filament supply which provides regulated DC current adjustable between 0.3A and 3.5A at 5.5V. High voltage and filament current can be linearly ramped up. Wisman’s XEL series x-ray generator can be taken easily and incorporates local and remote programming, monitoring, safety interlock, short-circuit ,arc and overload protection.

APPLICATIONS

X-ray tubes

Capacitor charging

Industrial equipment

Electronic components aging

Insulation testing

Electrophoresis

Electrostatic applications

Lasers

Scientific research.
