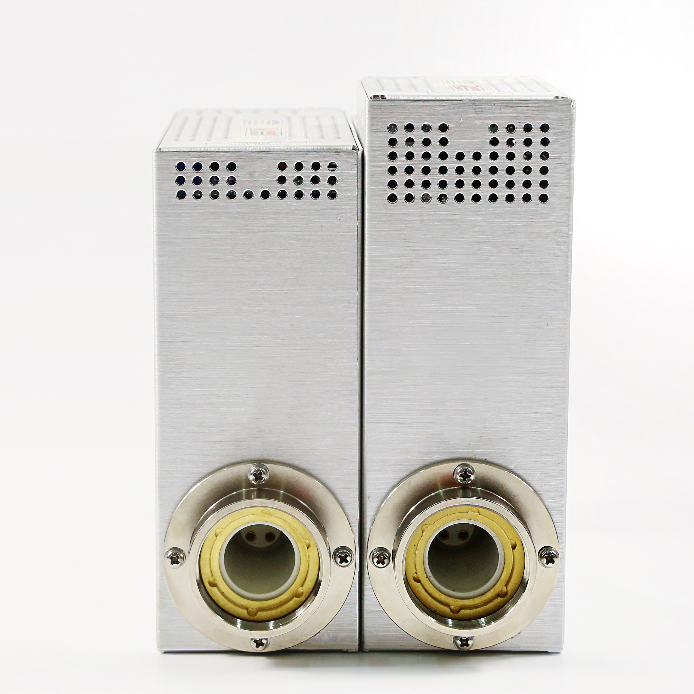

XFN Series X Ray Generator

1. Models from 10KV to 70kV, 10W to 100W

2. Integrated Floating Filament Supply 4A@5Vdc

3. low output ripple and noise ＜0.1%p-p

4. high stability 0.02%/8 hour

5. low temperature coefficient 25ppm/℃

6. Optional USB, RS232, RS485 ，Ethernet Digital Interfaces

7. Overvoltage, Arc and short circuit Protected

8. Voltage and current adjustment function

9. Local or remote control, or digital control

10. Safety interlock function

11. OEM customization available

INTRODUCTION

Wisman’s XFN Series x-ray generator is designed for negative floating filament x-ray tubes from various manufacturers, operating from +24Vdc,output voltage ranges from 10kV to 70kV and up to 2mA of emission current limited to 50, 65,75 and 100 watts. Wisman’s XFN x-ray generator utilizes a closed loop control to provide a high regulated beam current. The floating filament supply operates between 0.3 and 5 amps. XFN series x-ray generator is with the features of tight regulation, high stability,low ripple and small size, provides users both local and remote analog control to set beam voltage, emission current and filament current limit. An optional USB2.0, RS232，RS485 and Ethernet interface.
