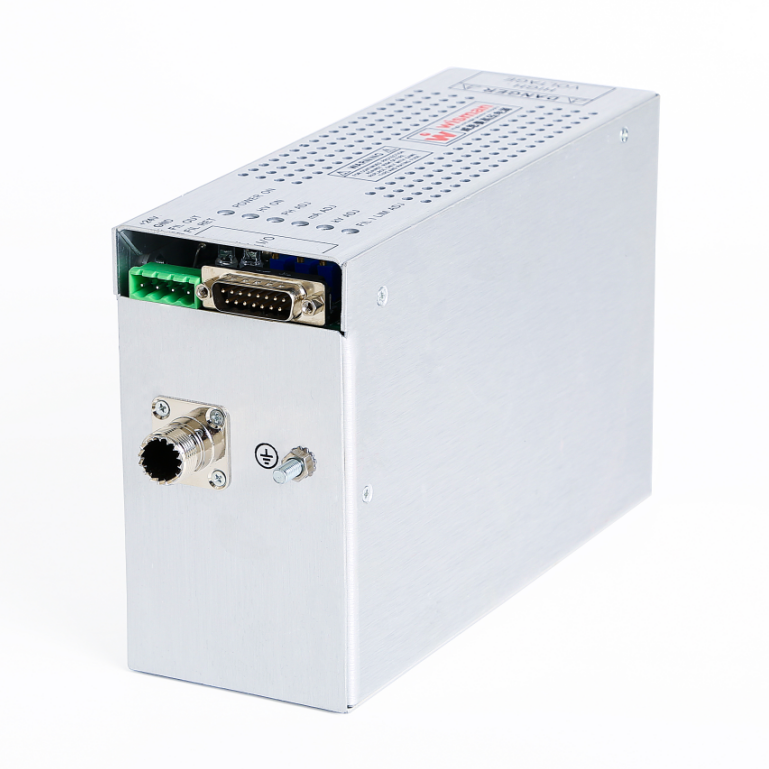

XNA Series X Ray Generator

1. Models from 10kV to 70kV, 10W to 100W

2. Integrated Filament Supply 3.5A@5.5Vdc

3. low output ripple and noise ＜0.1%p-p

4. high stability 0.02%/8 hour

5. low temperature coefficient 25ppm/℃

6. Optional USB, RS232, RS485 Ethernet Digital Interfaces

7. Overvoltage, Arc and short circuit Protected

8. Voltage and current adjustment function

9. Local or remote control, or digital control

10. Safety interlock function

11. Size 127.00mm x 75.00mm x203.00mm

12. OEM customization available

INTRODUCTION:

Wisman’s XNA series x-ray generator is a compact,tight regulation and high stability high voltage power supply which is designed for all kinds of x-ray tubes. XNA offers output voltage ranges from 30kV to 70kV,and designed to DC filament to Ground,voltage 0~5.5Vdc adjustable,filament current ranges from 0.3A to 3.5A adjustable. Wisman’s XNA x-ray generator provides local and remote control,with interface USB2.0, RS232 and RS485 Ethernet option.

Wisman’s XNA series is with the overvoltage,overcurrent,arc and safety interlock function.

APPLICATIONS

X-ray fluorescence instrument

X-ray fluoroscopy

X-ray imaging

Non-destructive detection

Thickness inspection

Electroplating measurement

Particle size inspection

Density measurement

Cable deviation measurement

Crystal inspection

Diamond inspection

Mineral analysis

Plastic sorting

X-ray diffraction

PCB inspection

Multi-layer PCB alignment, etc…
Optional function:
　　　　　USB computer USB2.0 measurement and control
　　　　　RS485 computer RS485 measurement and control
　　　　　RS232 computer RS232 measurement and control

Ethernet computer WAN measurement and control
