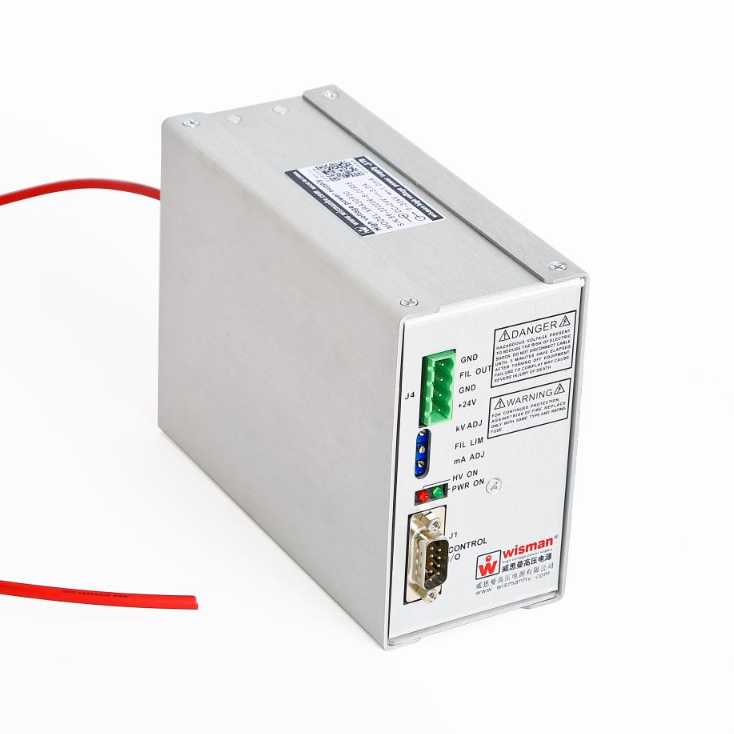

XRA Series X Ray Generator

1. Models from 10KV to 30kV, 6W to 100W

2. Integrated Filament Supply 3a@5Vdc

3. low output ripple and noise ＜0.1%p-p

4. high stability 0.01%/8 hour

5. low temperature coefficient 25ppm/℃

6. Optional USB2.0, RS-232, RS485 Digital Interfaces

7. Overvoltage, Arc and short circuit Protected

8. Voltage and current adjustment function

9. Local or remote control, or digital control

10. Safety interlock function

11.Small size 65.00mm x 115.00mm x150.00mm

12. OEM customization available

INTRODUCTION:

Wisman’s XRA Series of regulated X-ray high voltage power is specialized for x-ray tube and with high stability and incorporate a filament supply which provides regulated DC current adjustable between 0A and 3.5 A at 5.5V. High voltage and filament current can be linearly ramped up. Output voltage ranges from 10kV to 30kV, output power ranges from 6W to 100W, An optional USB 2.0、RS-232 or RS-485 interface is optional. Wisman’s XRA incorporates local and remote programming, safety interlock, short-circuit ,overload protection and overvoltage protection.

Supporting different kinds of X-ray tubes: Kevex, Oxford, RTW, Superior, Varian and Trufocus, and X-ray tubes with grounded cathodes produced by various manufacturers around the world.

APPLICATIONS：

Thickness

Static elimination

Online element analysis

X-ray fluoroscopy

Particle size inspection

Density measurement

Paper composition inspection

ROHS detector

Non-destructive inspection

Portable X-ray machine

Dental X-ray machine.
