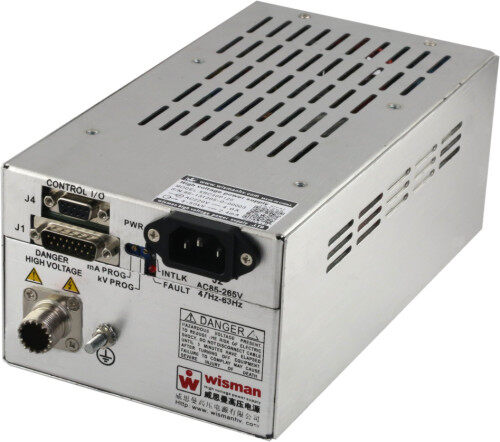

XRC Series X Ray Generator

1. Power factor corrected input 86Vac~265Vac

2. Models from 10KV to 70kV, 120W

3. Integrated Filament Supply 3.5A@5.5Vdc

4. low output ripple and noise ＜0.1%p-p

5. high stability 0.02%/8 hour

6. low temperature coefficient 25ppm/℃

7. Optional Ethernet, RS-232, RS485 Digital Interfaces

8. Overvoltage, Arc and short circuit Protected

9. Voltage and current adjustment function

10. Local or remote control, or digital control

11. Safety interlock function

12. OEM customization available

INTRODUCTION

Wisman’s XRC series x-ray generator is designed for AC wide voltage ranges from 86Vac~ 256Vac high voltage modules,which is with the function of power factor correction. Wisman’s XRC series x-ray generator is specialized for all kinds of x-ray tubes, incorporate a filament supply providing regulated DC current adjustable between 0.3A to 3A at 5.5V. High voltage and filament current can be linearly ramped up.

Wisman’s XRC series x-ray generator can realize remote control of the output voltage and current via connecting a potentiometer, with the function of voltage and current monitor, overvoltage protection, arc, short circuit and safety interlock protection. XRC series x-ray generator is the best choice for OEM customers, with the interface of RS232 and RS485 optional.

APPLICATIONS

Plastics Sorting,
Crystal Inspection
Plating Measurement
Diamond Inspection
Mineral Analysis
X-Ray Fluorescence
X-Ray Diffraction
