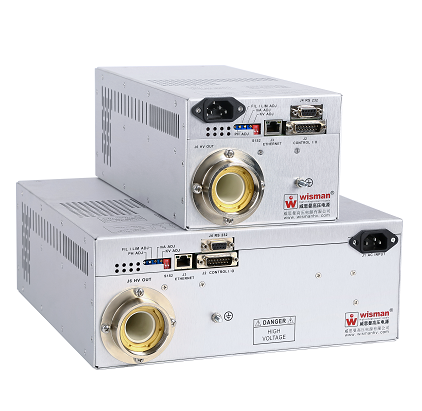

XRD Series X Ray Generator

1. Power factor corrected input 86Vac~265Vac

2. Models from 20KV to 160kV, 300W to 1.2kW

3. Integrated Filament Supply 5A@10Vdc

4. low output ripple and noise ＜0.1%p-p

5. high stability 0.02%/8 hour

6. low temperature coefficient 25ppm/℃

7. Optional Ethernet, RS-232, RS485 Digital Interfaces

8. Overvoltage, Arc and short circuit Protected

9. Voltage and current adjustment function

10. Local or remote control, or digital control

11. Safety interlock function

12. OEM customization available

INTRODUCTION

Wisman’s XRD series x-ray generator are designed for all kinds of x-ray tubes from different manufacturers. It is the best choice of OEM applications, with output voltage ranges from 20kV to 160kV, output power 300W, 600W and1200 watts option.

Wisman’s XRD series x-ray generator adopts wide voltage input, small package size, standard analog which makes it easier to integrate the XRD series into your x-ray analysis system. XRD series can choose floating filament(negative HV polarity) or groung referenced filament(positive HV polarity). DSP based sioncontrol circuitry provides excellent regulation of emission current, along with standing stability performance. With the RS232,RS485 and ET interface option.
