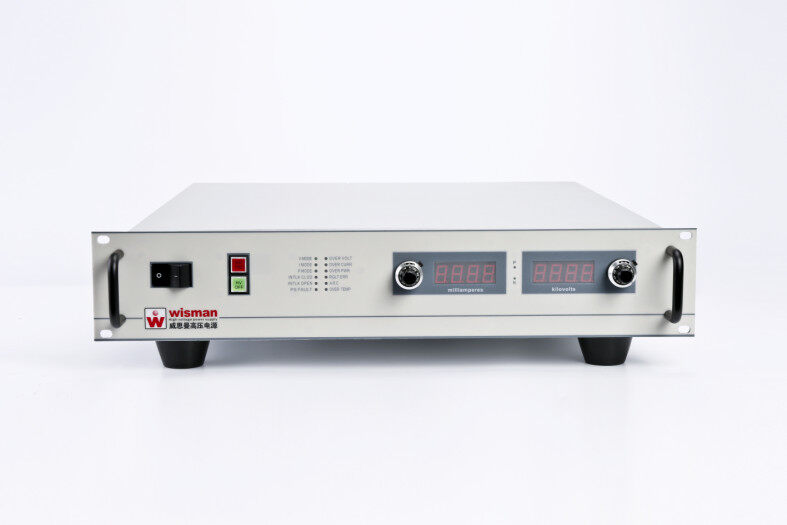

XRF Series X Ray Generator

1. Input 220Vac±10%,10A

2. Models from 30KV to 60kV, 600W,2kW.0 ~ 60mA

3. Integrated Floating Filament Supply 5A@10Vdc

4. low output ripple and noise ＜0.1%p-p

5. high stability 0.02%/8 hour

6. low temperature coefficient 25ppm/℃

7. Ethernet, RS-232, Optional RS485 Digital Interfaces

8. Overvoltage, Arc and short circuit Protected

9. Voltage and current adjustment function

10. Local or remote control, or digital control

11. Safety interlock function

12. OEM customization available

INTRODUCTION

Wisman’s XRF series, high stable, low ripple compact x-ray generator is specialized for all kinds of x-ray tubes from different manufacturers. XRF series is with the perfect protection system .Wisman’s XRF series incorporates local,remote and computer programming, monitoring, safety interlock, over voltage, arc, short circuit and overload protection with option of standard RS232 and ET interface.

APPLICATIONS
1. X-ray machine, high-energy particle injection;
2. Hi-POT test, high-voltage capacitor charging, scientific research, etc.
