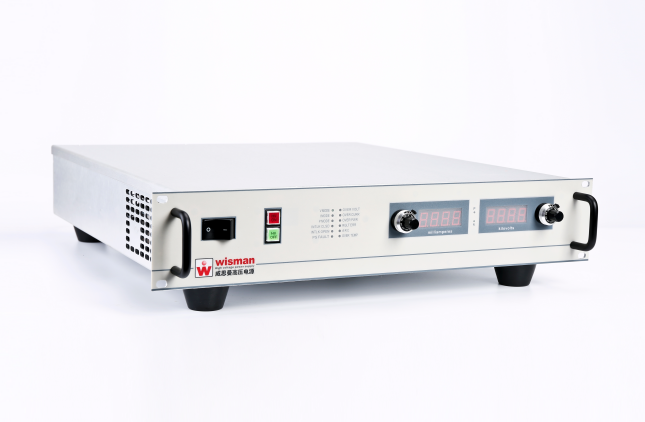

XRG Series X Ray Generator

1. Input 220Vac±10%,10A

2. Models from 10KV to 130kV, 10W to 300W

3. Integrated Filament Supply 3A@3Vdc

4. low output ripple and noise ＜0.1%p-p

5. high stability 0.02%/8 hour

6. low temperature coefficient 25ppm/℃

7. Ethernet, RS-232, Optional RS485 Digital Interfaces

8. Overvoltage, Arc and short circuit Protected

9. Voltage and current adjustment function

10. Local or remote control, or digital control

11. Safety interlock function

12. OEM customization available

INTRODUCTION

Wisman’s XRG series x-ray generators is specialized for all kinds for x-ray tubes from different manufacturers,which integrates filament supply providing regulated DC current adjustable between 0.3A to 3A at 5.5V. Extremely stable voltage and emission current outputs result in significant performance improvements.Wisman’s XRG series x-ray generator can realize remote control via potentiometer, and with the function of voltage,current monitoring, over voltage protection ,short-circuit and safety interlock protection. RS232 and ET interface option.

APPLICATIONS

X-ray fluorescence instrument

Paper

Film

Aluminum foil thickness measurement

Online element analysis

X-ray fluoroscopy

Particle size detection

Density measurement

Paper composition detection

Online process control

ROHS detection

Thickness measurement

Printed circuit board inspection system

X-ray fluorescence analysis

Radiography field

X-ray imaging

Multi-layer PCB alignment

Particle size detection

Density measurement

Process control

X-ray spectroscopy

Welding head

Wire head detection corresponding X-ray tube (cathode or anode grounded ): Kevex, Oxford, RTW, Superior, Varian, Trufocus and several domestic brands.

Optional Functions:

AC filament power supply
CPC constant power output
