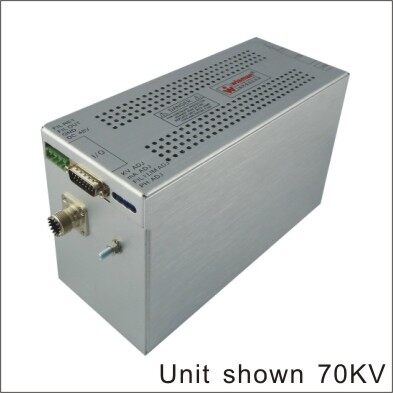

XRL Series X Ray Generator

1. Models from 10KV to 100kV, 75W to 200W

2. Integrated Filament Supply 3.5A@5.5Vdc

3. low output ripple and noise ＜0.1%p-p

4. high stability 0.02%/8 hour

5. low temperature coefficient 25ppm/℃

6. Optional USB, RS-232, RS485 Digital Interfaces

7. Overvoltage, Arc and short circuit Protected

8. Voltage and current adjustment function

9. Local or remote control, or digital control

10. Safety interlock function

11. OEM customization available

INTRODUCTION

Wisman’s XRL Series of regulated x-ray power supplies offer output voltages to160kV and incorporate a filament supply which provides regulated DC current adjustable between 0.3A and 3.5A at 5.5V.High voltage and filament current can be linearly ramped up. Wisman’s XRL x-ray generator incorporates local and remote programming, monitoring, safety interlock, short-circuit and overload protection. RS232,RS485, USB2.0 optional.

APPLICATIONS

Thickness gauge steel strip

Iron strip

Plastic sorting

Crystal inspection

Electroplating measurement

Diamond inspection

Mineral analysis

X-ray fluorescence

X-ray diffraction

Industrial X-ray machine

Capacitor charging

Nuclear instrument

Non-destructive detection

Portable X-ray Machine

Dental X-ray machine

Online element analysist

Thickness inspection

X-ray fluoroscopy

Particle size inspection

Density measurement

Paper composition inspection.
