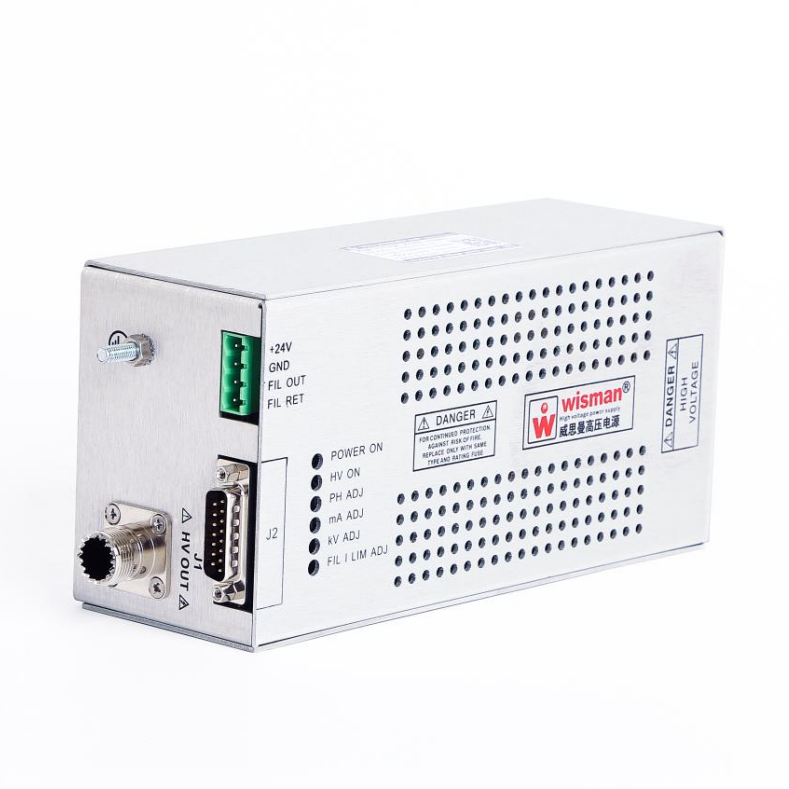

XW Series X Ray Generator

1. Models from 10KV to 70kV, 10W to 100W

2. Integrated Filament Supply 3.5A@5.5Vdc

3. low output ripple and noise ＜0.1%p-p

4. high stability 0.02%/8 hour

5. low temperature coefficient 25ppm/℃

6. Optional Ethernet, RS-232, RS485 Digital Interfaces

7. Overvoltage, Arc and short circuit Protected

8. Voltage and current adjustment function

9. Local or remote control, or digital control

10. Safety interlock function

11.Small size ，30% Smaller than XRN

12. OEM customization available



INTRODUCTION:

Wisman’s XW series high stability precision high voltage module is a small size x-ray generator dedicated for x-ray tube. Wisman’s XW series x-ray generator outputs a positive high voltage of 10kv-70kv. XW series  x-ray generator provides a direct current to the ground filament, the voltage is adjustable from 0 to 5.5Vdc, and the filament current can be adjusted between 0.3A and 3.5A.Wisman’s  XW series x-ray generator can be accurately measured and controlled internally, externally and by computer,with USB2.0, RS-232, RS-485 interface options. XW series x-ray generator has protections such as overvoltage, overcurrent, arcing, and safety interlock.



APPLICATION:

X-ray Imaging,Thickness,X-ray diffraction,X-ray Inspection,Non-destructive Testing,Micro-focus spot X-ray tube,ROHS Inspection
